Factory Repair Manual Ford Bronco (2020-2023) & Wiring Diagrams PDF

2020-2023 Ford Bronco | Ultimate Sixth-Gen Factory Service Suite

The Definitive Blueprint for the Modern Off-Road Icon

Command the full technical potential of your Sixth-Generation Bronco with the Official Factory Repair Manual for the 2021–2023 model years. This high-definition PDF library is the same master resource used by Ford dealership technicians to maintain the Bronco’s advanced unibody-on-frame architecture. From the precision of the 2.7L Twin-Turbo V6 to the complex logic of the G.O.A.T. Modes™, this manual provides the surgical data required for everything from routine oil changes to deep-trail mechanical overhauls.

📋 Document Intelligence & System Specs

• Model Range: 2021, 2022, 2023 (Launch through current refinements)
• Platform: Sixth-Generation Ford Bronco (U725)
• Official Language: English (High-Resolution Factory Original)
• File Format: Searchable, Fully Bookmarked PDF
• Universal Access: Optimized for PC, Mac, iOS, and Android
• Delivery: Secure instant digital download link provided immediately upon purchase

⚙️ Performance Engineering & 4x4 Mastery

Comprehensive technical coverage for the most capable Bronco ever built:

• EcoBoost Powerplants: Exhaustive teardown and timing data for the 2.3L I4 and the high-output 2.7L Twin-Turbo V6.
• Transmission Technology: Detailed service protocols for the unique Getrag 7-Speed Manual (MT88) with crawler gear and the 10-Speed Automatic (10R60).
• Terrain Management: Deep-dive diagnostics for G.O.A.T. Modes™, Trail Turn Assist, Trail Control, and the electronic disconnecting stabilizer bar.
• Driveline Excellence: Full technical specs for the HOSS (High-Performance Off-Road Stability Suspension) systems, Spicer® AdvanTEK® axles, and locking differentials.

⚡ Advanced Electronics & Off-Road Tech

Navigate the Bronco’s sophisticated digital "nervous system" with professional accuracy:

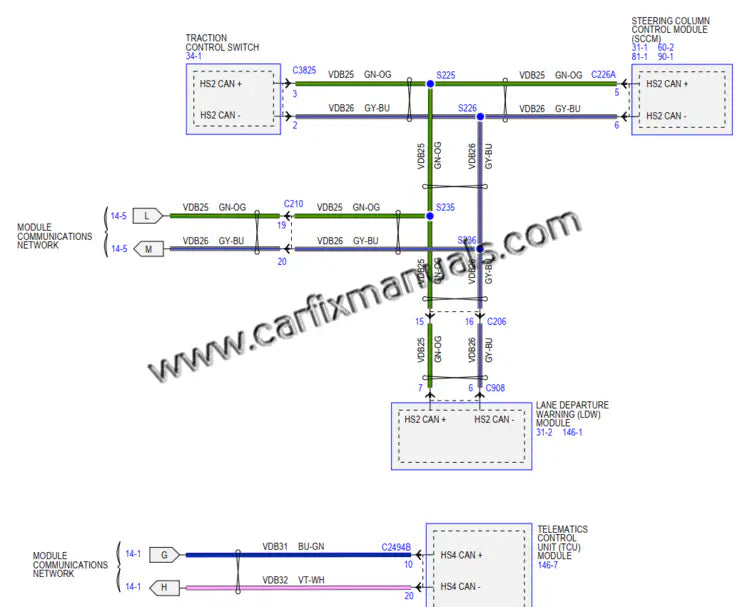

• Full-System Circuit Maps: High-definition wiring diagrams for SYNC 4 with Off-Road Navigation, the 360-degree camera system, and auxiliary upfitter switches.
• Removable Component Logic: Specialized wiring and sensor data for the removable doors and modular roof systems.
• Safety & ADAS: Step-by-step troubleshooting for Ford Co-Pilot360™, Pre-Collision Assist, and advanced airbag deployment zones.
• Network Integrity: Complete schematics for the CAN-bus and Ethernet communication networks that link the Bronco's performance modules.

💻 Why This Official Bronco Manual Wins

• Instant Keyword Indexing: Locate any torque value, fluid capacity, or assembly sequence in seconds using the digital "Find" tool.
• Modular Body Data: Includes official procedures for removing and installing doors, tops, and fender flares without damaging electronics.
• Authentic Factory Logic: Access the original manufacturer tolerances and safety protocols used at the Michigan Assembly Plant.
• Workshop Ready: Print high-detail diagrams for suspension or brake assemblies to keep at the vehicle, preserving your digital hardware.
